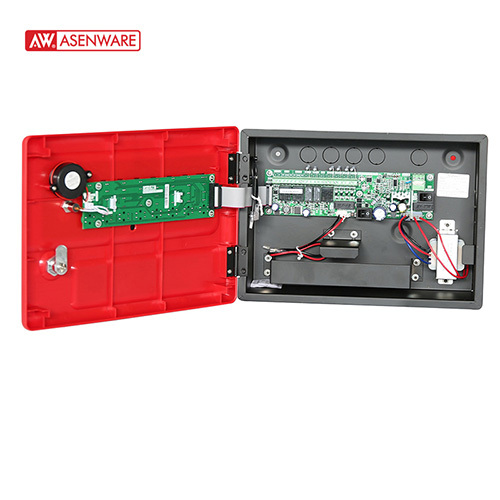

Conventional Fire Alarm Control Panel 4 Zone

Description Review

Description

Conventional Fire Alarm Control Panel 4 Zone is the central part of conventional fire alarm system, designed for applications requiring smoke detector, bell, manual pull stations, and sprinkler supervision. Each zone can be disabled by a button. The basic unit offers 1 to 8 zones of initiation, up to 32 zones for larger applications.

Conventional Fire Alarm Control Panel 4 Zone Specification:

It is modularized design, the panel can expend from 1 zone to 32 zones easily.
2 level control mode by a lock
24VDC and 5VDC power supply output.
FIRE and FAULT signal output.
2 general sounders output.
Each zone has 1 circuit detectors input
Each zone can be disable by a button.
RESET button to reset the panel.
SILENCE button to stop BUZZER and SOUNDERS.
EVACUATE button to start a manual fire alarm immediately.
battery low protection function, when battery voltage lower than 21VDC
battery will be cut off automatically until the mains power is on.
an optional GSM module for fire alarm by SMS

How To Wire A Complete Conventional Fire Alarm System？

AC INPUT	220VAC 50HZ
DC OUTPUT	24VDC typical
Voltage for MCU	5V for power board MCU, 3.3V for others
Current at 24VDC from PSE	450mA standby current
Maximum current from PSE	2A except batteries charge
Batteries current	1.85A maximum, current limited
Auxiliary output	24VDC +/- 10%, 100 mA max, current limited, monitored
Batteries	2*12V/ 2.3Ah sealed lead acid gel, self-regulated
	2*12V/ 7Ah if needed
Battery replace Resistance	2Ω±10% if needed
Battery low-voltage protection	22.2V
Detectors connection allowed each zone	20 (except MCPs)
Zone alarm current	6mA minimum/ 27mA maximum
Sounder output	2*0.75A maximum
Fire protection	100mA maximum
Fire routing	100mA maximum
Fault routing	100mA maximum
Communication protocol	2 wires RS485 bus system
Relay contacts rating	Dry contacts (NO/NC) 1A @24VDC
EOL resistor for zone	6.8K 1W
EOL resistor for outputs	6.8K 1W
Fuse on power board	3A/ 250V glass tube fuse 20mm
Fuse on EMI board	1A/ 250V glass tube fuse 20mm
Environmental	Class A temperature range: -5 to 50°C Humidity: 5 to 95% RH, non-condensing
Terminal blocks rating	All terminals rated for 12 to18 AWG (0.75 to 2.5 mm2)
